Cup Volumetric Granule Packing Machine Pneumatic Control System Founded

Place of Origin : Shanghai, China (Mainland)

Brand Name : JB

Certification : CE

Price : US $7880-25000 / Sets | 1 Set/Sets powder packing machine (Min. Order)

MOQ : 1 Set/Sets

Model Number : JB-420L

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 20 working fays

Packaging Details : wooden box

Condition : New

Application : Food, powder packing machine

Packaging Type : Film

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Power : 3.5KW

Weight : 450kg

Dimension(L*W*H) : 1320 x 9200 x 1390 (mm)

After-sales Service Provided : Engineers available to service machinery overseas

name : granule packing machine

Packing speed : 10-70bags/min

Control panel : color touch screen

Measure device : cup volumetric

Language : English

Motor type : stepping

Film width : max 420mm

Bag width : L60-300 W80-200mm

Machine material : 304 stainless steel

Print unit : 1-3 lines (date code/expiry date)

Contact Now

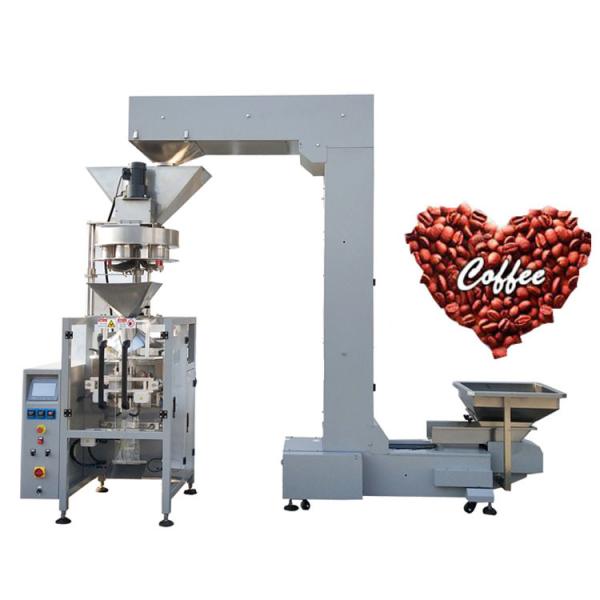

CE Approved Price JB-420L Automatic Soybean Granular Cup Volumetric Filler Packing Machine

This machine is mainly used for packing granular products: such as sugar, salt, coffee beans, rice, peanuts, sunflowerseeds, grains, nuts, chocolate beans, oatmeal, washing powder, desiccants, etc.

1.Workflow: material lifting -cup volumetric fller measuring coding --bag making-- filling --gas injection/ exhaust(optional) --sealing --counting--conveying finished products.

2.Adopts PLC servo and pneumatic control system, touch screen display, high reliability and intellectualized degree.and equipped with safety protection.

3.Touch screen can store a variety of diferent product packaging process parameters, when replacing product, it canbe used at any time without resetting.

4 Equipped with fauit display system, could be clear at a glance when the fault occurs, in order to be ruled out prompty.

5.This machine body is carbon steel (optional: 304 sanless steel).

Model	JB-420L
Packing speed	10-70 bags/min
packing volume	1500ml
Making bag size	L:60-300mm,W:80-200mm
Film width	≤420mm
Thickness of film roll	0.04-0.09mm
Pulling film type	double belt pull film
Air consumption	0.8Mpa,0.5m³/min
Packing accuracy	≤±1%(depends on product)
Main machine power	3.5kw
Power supply	1Ph.220V,50/60Hz
Seal type	Pillow seal,Gusset bag,Block bottom bag
Main machine net weight	450kg
Main machine dimension	L1320W920H1390mm
