PLC Control Bag Sealing Machine , Stainless Steel Biscuit Packing Machine

Place of Origin : China (Mainland)

Brand Name : JB

Model Number : JB-420Z

Certification : CE

Price : US $9,300-20000 / Sets | 1 Set/Sets powder bottle filling and capping machine (M

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 stes per month

Delivery Time : 20 working days

Packaging Details : wooden box

Type : Filling Packing Machine

Condition : New

Application : Chemical, Food, Medical

Packaging Type : Bottles, Cans, turmeric powder filling machine

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Power : 2.5KW

Dimension(L*W*H) : 1320*920*1390mm

Weight : 450kg

After-sales Service Provided : Engineers available to service machinery overseas

Product name : bottle filling and capping machine

filling nozzle : 1

filling volume : 2000ml

capacity : 20-60 bags/min

filling accuracy : ≤±1%

business model : factory production

warranty : 1 year

controller : PLC

service : lifelong

machine body : stainless steel

Contact Now

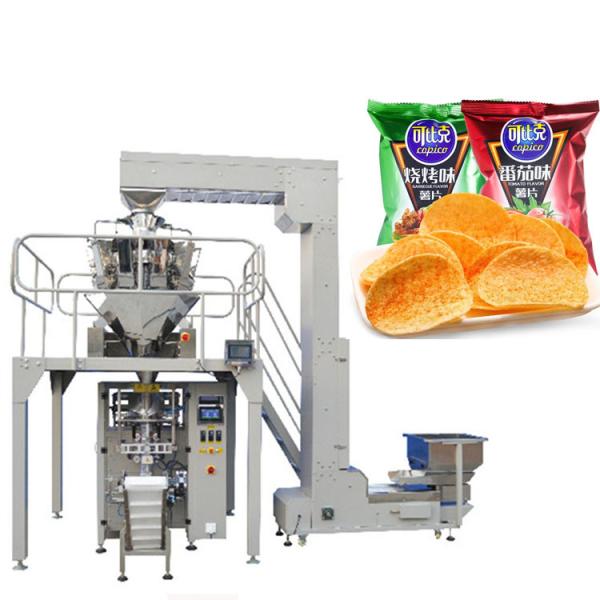

JB-420Z Automatic Small Snack Puffed Food Pouch Weighing And Packing Machine

This machine is mainly used for packing granule products: such as sugar, salt. cofe beans, rice, beans, peanuts.suflower seeds, grains, nuts, chocolate beans, potato chipststrips, frozen dumplings, cereal, desicants, etc


1 Workflow: material lifting >multihead weigher measuring- -coding -bag making filing -gas injectionexhaust (optional)- sealing +counting conveying finished products.

2. PLC servo and pneumatic control system, large touch screen forms the core of drive control; high reliability andthe inellectualized degree, and equipped with safety protection.

3. Touch screen can store a variety of different product packaging process parameters, when replacing product, itcan be used at any time without resetting.

4. Equpped with fault display system, when the fault occurs, be clear at a glance, in order to be promptly ruled out.5. This machine body is carbon steel (optional: 304 stainless steel).

Model

JB-420Z

Packing speed

20-60 bags/min

Packing volume

2000ml

Making bag size

L: 60-300mm, W: 80-200mm

Film width

≤ 420mm

Thickness of film roll

0.04-0.09mm

Pulling film type

Double belt pull film

Air consumption

0.8Mpa, 0.5m³/min

Packing accuracy

≤ ±1%

Power

2.5 KW

Power supply

AC220V, 50/60Hz

Seal type

Pillow seal, Gusset bag, Block bottom bag

Main machine net weight

450kg

Main machine dimension

L1320 × W920 × H1390mm
